PP / PE Plastic Pelletizing Recycling Machine 200kg/Hr Recycling Extruder Machine

Brand Name : PULIER OR PR

Model Number : ML85

Certification : CE

Place of Origin : China

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C or T/T

Supply Ability : 100 sets per year

Delivery Time : 50 days to 70 days

Packaging Details : shipment requested package

Name : Plastic Pelletizing Recycling Machine

Application : LLDPE LDPE PE PP OPP CPP BOPP BOPA BOPET film or bag

Capacity : 200kghr

Screw and Barrel Material : 38CrMoAl or customerized

Motor : WEG Siemens ABB China Famous Brand with inverter

Eelectrical Control : Eelctrical Panel or PLC touch screen

Gear Box : Changzhou Guomao or customerized

Heating Way : Electrcial Heating

Cooling Way : Force Cooling

Lubrication Way : Froce Lubrication

Quality Warranty : 12 months

Aboard Service : Installation and Commission

Operator : 1 or 2

Contact Now

High Efficiency PP PE Film Recycling Pelletizing Extruder Machine
Application

PE/PP roll, Bags, film scraps, buddle film, film sheet, shrink film, garbage bags, stretch film, post-consumer bags, shopping bags, PP non-woven bag pelletizing and recycling machine, cement bag, rotajet bags, washed flakes recycling extruder machine

Mian Techinical Parameter (high efficiency with power saving)
Model ML75 ML85 ML100 ML130 ML160 ML180 ML200
Screw diameter(mm) 75 85 100 130 160 180 200
L/D 26 to 37
Output(kg/h) 100-150 200-350 400 to 550 600 to 800 800 to 1000 1000 to 1200 1200 to 1500
Working Process
  1. Belt conveyor feed material into shredding compactor , both parts get designed with inter-lock
  2. Material get pre-heated, pre-homogenized and pre-plastification during shredding compactor
  3. Through friction force between compactor rotary cutters and fixed cutters, material get shrinked
  4. The shrinked material get melted in main extruder by heating and cooling
  5. Water ring cutting system cut the melt plastic into pellets
Why Choose Us
  • PR has professional manufacturer since 2006. we have our own technical design department. Each extruder get designed according to material feature.
  • Power saving with high output
  • Quality guaranty time is 12 months since the Bill of Lading date.
  • Delivery time: 40 work days to 60 days
  • Ship requested package
  • Machine installation is aboard available. It takes about 5 to 7 days with completing one time of installation. The assigned engineer(s) manage the machine user training, machine operation and commission
General Introduction
Model name ML
output Plastic pellets/granules/resins/plastic raw material
Machine parts Belt conveyor, cutter compactor, main extruder, pelletizing unit, cooling system, silo, cabinet
Recycling material PP/PE/LDPE/HDPE film, bag, fiber
Capacity range 100kg/h to 1200kg/h
Feeding way Conveyor, roll driving system
Screw diameter 75mm to 200mm
Screw L/D 26 to 33
Screw raw material 38CrMoAl or bimetallic
degassing Natural degassing, vacuum degassing
Cutting type Vertical pelletizing way, pull strip pelletizing
Cooling type Water cool, air cool
voltage Customized
Optional devices Metal detector, water cooling system, feeding silo, vibration system
Delivery time 40 to 60 days
Warranty time 13 months
Technical supports Machine layout, installation layout, engineer oversea service
Certificate CE/ SGS/ TUV/CO

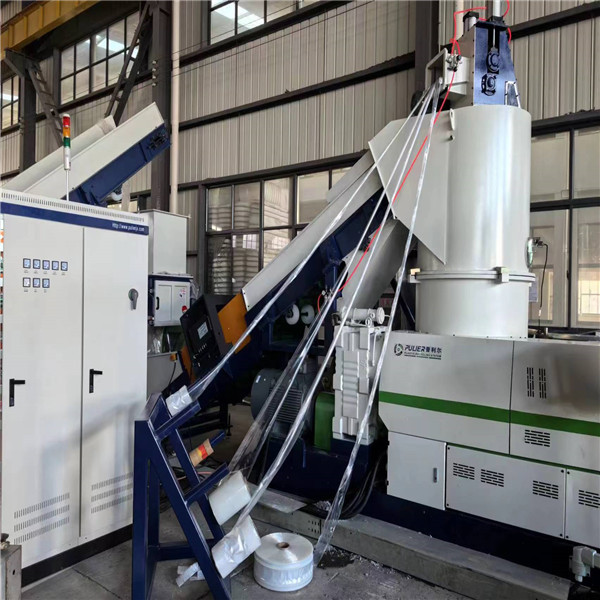

Machine Pictures

PP / PE Plastic Pelletizing Recycling Machine 200kg/Hr Recycling Extruder Machine

PP / PE Plastic Pelletizing Recycling Machine 200kg/Hr Recycling Extruder MachinePP / PE Plastic Pelletizing Recycling Machine 200kg/Hr Recycling Extruder Machine
